Mineral Water/Packaged Drinking Water Project

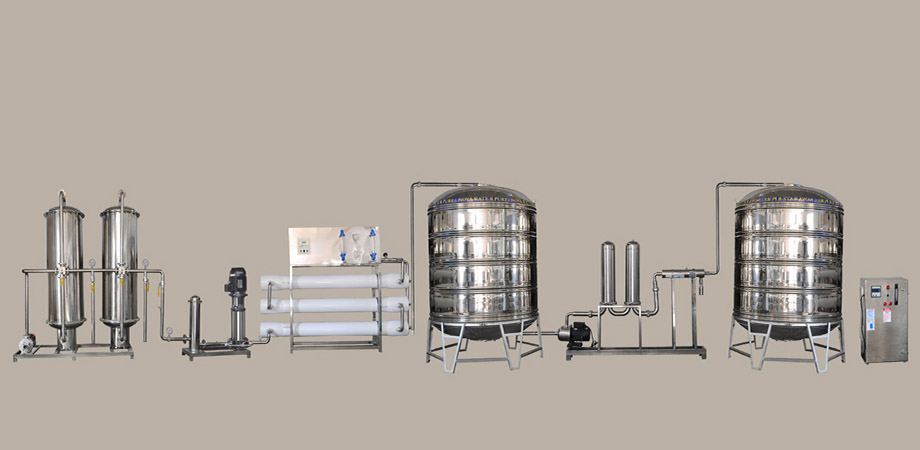

Mineral water plant

Sagar Aqua Solution has concentrated their focus on various Turnkey Projects and Mineral Water Project is one of them. We are reckoned for rendering premium quality mineral water to the clients spread across the globe. Water Process Description The raw water is processed to remove various organic impurities and make it rich for drinking purpose. The raw water undergoes through Multi Media Filter to remove suspended impurities and further through Activated Carbon Filter that removes the chlorine content in the water and make it free from any kind of odour, color and turbidity. Further, the De chlorinated water is passed through water softener to remove hardness.

Mineral Water / Packaged Drinking Water Project consist of following:

Water Source

Water should be collected from the source which should be well protected, available easily, un-contaminated. Sources can be anything viz. Bore well water Line, Closed Ring Well, Municipal Supply Line or Other source where treatment is possible.

Water Transfer

Water is transferred to Raw Water Storage Tanks using proper pumping system and un-contaminating piping work. Either Submersible Pump or surface mounted Centrifugal pump can be used with good quality UPVC or CPVC or SS piping can be used for this application.

Complete Water Treatment System

  • Raw Water feed Pump
  • Chlorine Dosing system
  • Multi Media Filtration for Coarse filtration
  • Activated Carbon Filtration
  • Water Softening / Anti Scalent Treatment Process
  • Reverse Osmosis Or Nano / Ultra Filtration
  • Purified Water Storage in Stainless Steel tank
  • Transfer Pump in stainless steel
  • Micron Cartridge Filtration (0.2 Micron)
  • UV Sterilization
  • Ozone Disinfection

  • Water Testing Facility

    Purified Water is tested using IN HOUSE Water Testing laboratory Where Chemical and Micro Biologically Water is tested for Chemical and Micro Biological parameters. For this, a complete full fledge Water Testing CHEMICAL and MICRO BIOLOGICAL Lab is required. However, water is also tested for Pesticide and Radio-nuclear parameters in outside Bureau of Indian standards approved laboratory.

    Water Testing Facility

    Chemical Lab Min 150 sf ft Room / Shelves, Cup-boards (Your Scope) All Required Chemicals and Reagents Glassware / PP Ware Instruments as per BIS
    Micro-Biology Lab Min 150 sf ft Room / Shelves, Cup-boards (Your Scope) All Required Chemicals and Reagents Instruments as per BIS
